|Place of Origin:||CHINA|
Payment & Shipping Terms:
|Minimum Order Quantity:||2000 pcs|
|Packaging Details:||Cartridges (net 300ml), sausages (net 590ml)|
|Delivery Time:||4 working days|
|Supply Ability:||20000 pcs/4 working days|
|Features:||One Part, Neutral Cure||Usage:||Construction|
|Color:||Black,white,grey||Shelf Life:||12 Months|
|Application:||Structural Sealing And Glazing For The Curtain Walls Of High-rise Buildings And Skyscrapers. Structural Sealing And Glazing Of Large-sized Glass Panel Curtain Walls. Structural Sealing And Glazing Irregular Glass Curtain Walls||Volume:||300ml/plastic Cartridges,590ml/aluminium Sausages|
|Basic Uses:||Structural Sealing And Glazing|
acetoxy silicone sealant,
weatherproof silicone sealant

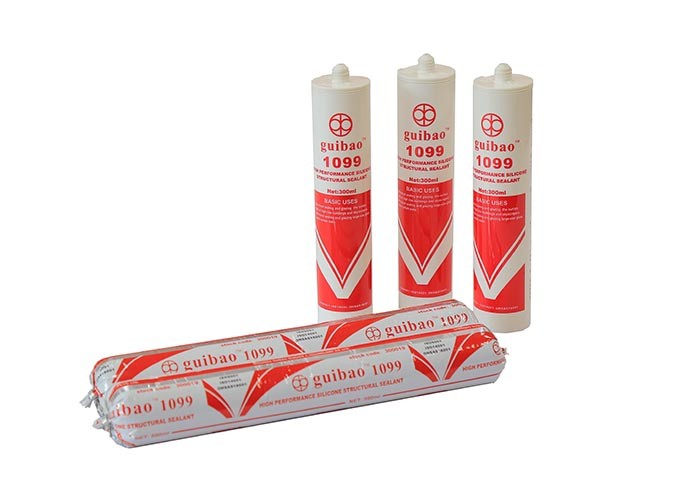

One Part High Performance Silicone Structural Sealant Construction Silicone Sealant
High performance silicone rubber special for structural glazing in high-rise or skyscraper curtainwalling.
Excellent tensile strength and extension/compression capability, ideally suited for high rise curtain walls and skyscrapers, glass and aluminum curtain walls, steel structure curtain walls, etc.
Neutral cure, non-corrosive to the surfaces to be bonded.
Excellent stability over temperature range from -50℃ to +150℃.
Excellent unprimed adhesion to a wide range of substrates.
Good compatibility with other neutral silicone sealants.
GB1099 is available in black, grey, white or other customized colours.
GB 1099 is available in disposable cartridges (net 300ml) and sausages (net 590ml).
GB 1099 High Performance Silicone Structural Sealant is designed for:
Structural sealing and glazing for the curtain walls of high-rise buildings and skyscrapers.
Structural sealing and glazing of large-sized glass panel curtain walls.
Structural sealing and glazing irregular glass curtain walls.
These values are not intended for use in preparing specifications.
|GB/T 13477 (ISO 7390)||Slump||mm||≤3||0|
|GB/T 13477 (ISO 7390)||Extrusion rate||s||≤3||4.2|
|GB/T 13477 (ASTM D 2377)||Tack free time||h||≤10||0.3|
GB/T 531.1 (ISO 7619)
|GB 16776 (ASTM C 792)||Heat Aging|
|GB/T 13477 (ISO 8339)||Tensile strength||
|water immersion||≥ 0.45||1.42|
|water-UV exposure||≥ 0.45||1.23|
|adhesion failure||%||≤ 5.0||0|
|elongation at ultimate tensile strength at 23℃||%||≥ 100||286|
*GB: Chinese National Standard.
ASTM: American Society for Testing and Materials.
ISO: International Standardization Organization.
GB1099 is designed to meet or even exceed the requirements of:
Chinese national specification GB16776-2005 Silicone Sealant for Structural Glazing.
Complies with ASTM C 1184.
STORAGE AND SHELF LIFE
GB1099 should be stored at or below 27℃ in original unopened containers. It has a shelf life of 12 months from the date of manufacture.
GB1099 should not be applied:
To the materials that bleed oils , plasticizers or solvents, such as impregnated wood, oil-based caulks
In totally confined spaces as sealant requires atmospheric moisture for cure
To frost laden or damp surfaces
For continuous water immersion
When surface temperature below 4℃ or over 50℃
HOW TO USE
Clean all joints removing all foreign matter and contaminants such as oil, grease, dust, water, frost, old sealants, surface dirt, or glazing compounds and protective coatings.
Install back-up materials or joint fillers, setting blocks,
spacer shims, and tapes. Mask areas adjacent to joints to ensure neat sealant lines. Primer is generally not required for non-porous surfaces, but may be necessary for optimal seal performance of certain porous surfaces. So adhesion test is always recommended.
Apply GB 1099 in a continuous operation using dispensing guns. Before a skin forms, tool the sealant with light pressure to spread the sealant against the backing materials and joint surfaces. Remove masking
tape as soon as the bead is tooled.
GB 1099 is a chemical product, not edible, no implantation into body and should be kept away from children.
Cured silicone rubber can be handled without any risk to health.
Should uncured silicone sealant contact with eyes, rinse thoroughly with water and seek medical treatment if irritation persists.
Avoid prolonged exposure of skin to uncured silicone sealant.
Good ventilation is necessary for work and cure places.
Complete technical information and literature, adhesion testing and compatibility testing are available from Guibao.
The information presented herein is offered in good faith and is believed to be accurate. However, because conditions and methods of using our products are beyond our control, this information should not be used in substitution for customer’s tests to ensure that our products are safe, effective, and fully satisfactory for intended specific uses.
