|Place of Origin:||CHINA|
Payment & Shipping Terms:
|Minimum Order Quantity:||600ml: 2000pcs 310ml: 720pcs|
|Packaging Details:||Sausage :590ml or Cartridge : 310ml, Drum:25kg/250kg|
|Delivery Time:||4 work days|
|Supply Ability:||20000pcs/4 work days|
|Color:||White，Black And Other Customized Colors||Certificate:||UL|
|Application:||Solar PV Modules Frame Bonding||Junction Box:||Junction Box Bonding|
|Key Words:||Jubction Box , Solar PV Modules Frame, UL||Characteristic:||High Quality|
UL Solar Modules Silicone Sealant,
GUIBAO 888A Silicone Sealant,
Ozone Resistant Solar Panel Sealant

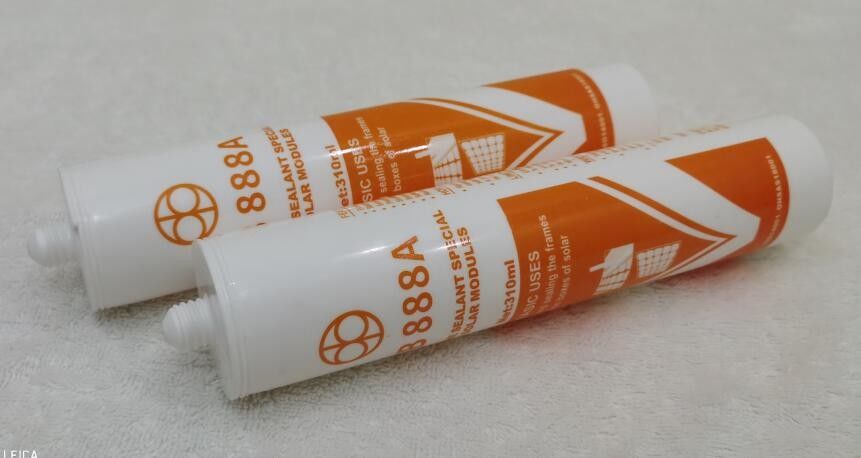

GUIBAO 888A Solar Modules Silicone Sealant
GB 888A silicone sealant for solar modules is specially designed for the following purposes
Sealing and bonding the frames of solar modules
Sealing and boning the junction boxes of solar modules
Excellent resistance to UV radiation
Stable and flexible from -50℃ to +180℃
Excellent electrical insulation performance
Protects from mechanical shocks and chemical mediators
Excellent weatherability and ozone resistance
These values are not intended for use in preparing specifications.
|/||Appearance||White or Black/paste/thixotropic|
|GB/T 13477||Tack free time||min.||10-30|
|GB/T 531.1||Hardness||Shore A||40-60|
|GB/T 528||Tensile strength||Initial strength||MPa||2.3|
|GB/T 528||Elongation at break||Initial strength||％||297|
|GB/T 7124||Shear strength||MPa||1.6|
|GB/T 1695||Dielectric breakdown strength||kV/㎜||26|
|GB/T 1692||Volume resistivity||Ω·cm||7.4×1015|
|GB/T 2048||Fire resistance rate Combustion performance||HB|
STORAGE AND SHELF LIFE
GB 888A should be stored in a cool and dry place .It has a shelf life of 12 months from the date of manufacture.
GB 888A is solvent free, non-hazardous for transportation.
HOW TO USE
Apply a bead of GB888A to one of the prepared surfaces, then quickly cover with the other substrate be bonded and remove the excess sealant
Tool immediately before a skin forms
A plug of used material may form in the tip of a tube or cartridge during storage. This is easily removed and does not affect the remaining contents.
Air pressure should be maintained at 0.2～0.4MPa when using pneumatic gun.
GB 888A is a chemical product, not edible, no implantation into body and should be kept away from children.
Should uncured silicone sealant contact with eyes, rinse thoroughly with water and seek medical treatment if irritation persists.
Avoid prolonged periods of exposure of skin to uncured silicone sealant.
Good ventilation is necessary for work and cure places.
Guibao has been certified by ISO9001, ISO14001 and OHSAS18001. The whole production process goes strictly in conformity with the regulations of the three systems.
