Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GUIBAO |
| Certification: | ISO |
| Model Number: | Silicone Gasket |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 2000kg |
| Price: | Negotiable |
| Packaging Details: | 20kg/roll |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000m/working day |
|
Detail Information |
|||
| Color: | Black Or Other Colors Customer Requested | Material: | Silicone |
|---|---|---|---|
| Application: | Window And Door, Curtain Wall | Service Life: | 50 Years |
| Feature: | Excellent Weatherability | Key Words: | Gasket, Silicone ,Excellent Weatherability |
| High Light: | silicone gasket sheet,extruded silicone gasket |
||

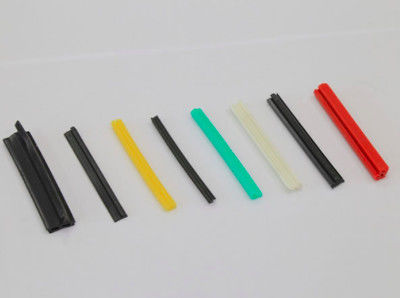

Product Description
FEATURES
Excellent cold and heat resistance
Excellent weatherability
Excellent compression recovery
TYPICAL PROPERTIES
These values are not intended for use in preparing specifications
| Test Method | Property | Unit | Standard | Result |
| GB/T 531 (ISO 7619) | Hardness | Shore A |
Designed ±5 |
70 |
| GB/T 13477 | Specific gravity | ml/min. | 1.3±0.1 | 1.28 |
| GB/T 528 (ISO 37) | Tensile strength | MPa | ≥5.0 | 7.5 |
| GB/T 528 (ISO 37) |
Extension at break
Deformation on conpression(100℃×168h)
|
% % |
≥250
≤35 |
700
25 |
STORAGE AND SHELF LIFE
GB silicone gasket is non-hazardous for transport,and should be stored in dry places under which it has a shelf life of 12 months from the date of manufacture
NOTES
Installation can be easier and smooth by dipping profiles in silicone oil or saponification liquid.
Gasket is not allowed to be much pulled and stretched during installation, and the length of the strip must be about 1% longer than the profiles to avoid seal failure caused by strip shrinkage.
The gasket for the corner of window and door should be cut into 45°angle, and the edge should be kept well connected to prevent cracking when shrinkage occurs.
If there is breakage of strip, don’t set it at the corner. Better set it in a longitude direction during installation, butt the breakages well and bond firm with adhesives.
