|Place of Origin:||CHINA|
Payment & Shipping Terms:
|Minimum Order Quantity:||100 sets|
|Packaging Details:||Part A in plastic pails (12kg), part B in plastic pails (2kg)|
|Delivery Time:||4 work days|
|Supply Ability:||100 sets/ 4 working days|
|Color:||Part A: White Fluid Part B: Shallow Yellow Liquid||Package:||Part A In Plastic Pails (12kg), Part B In Plastic Pails (2kg); Or Part A In Plastic Pails (3kg), Part B In Plastic Cartridges (300ml, 0.5kg)|
|Shelf Life:||9 Months||Packing:||Part A ：12kg, Part B 2kg|
|Key Words:||Electronic Potting Sealant For Solar Junction Box||Feature:||Two Part,good Self-debubbling Performancexcellent Electrical Insulation , And Fire Resistance Performance，|
heat proof silicone sealant,
window and door silicone sealant
Industrial Silicone Electronic Potting Sealant Solar Panel Sealant
Good flowability as supplied , good self-debubbling performance
Stable and elastic over the temperature -50℃～+200℃
Excellent electrical insulation , and fire resistance performance
Excellent resistance to water ,moisture
Excellent adhesion to PPO,PET,PVDF and other materials
Non-corrosive to copper, aluminium, tin ,silver and many other materials
FV-0 class fire resistance capability
Excellent thermal conductivity
GB 4808 part A is available in white or black fluid, and part B in clear or shallow yellow liquid. It is white or black fluid after mixing.

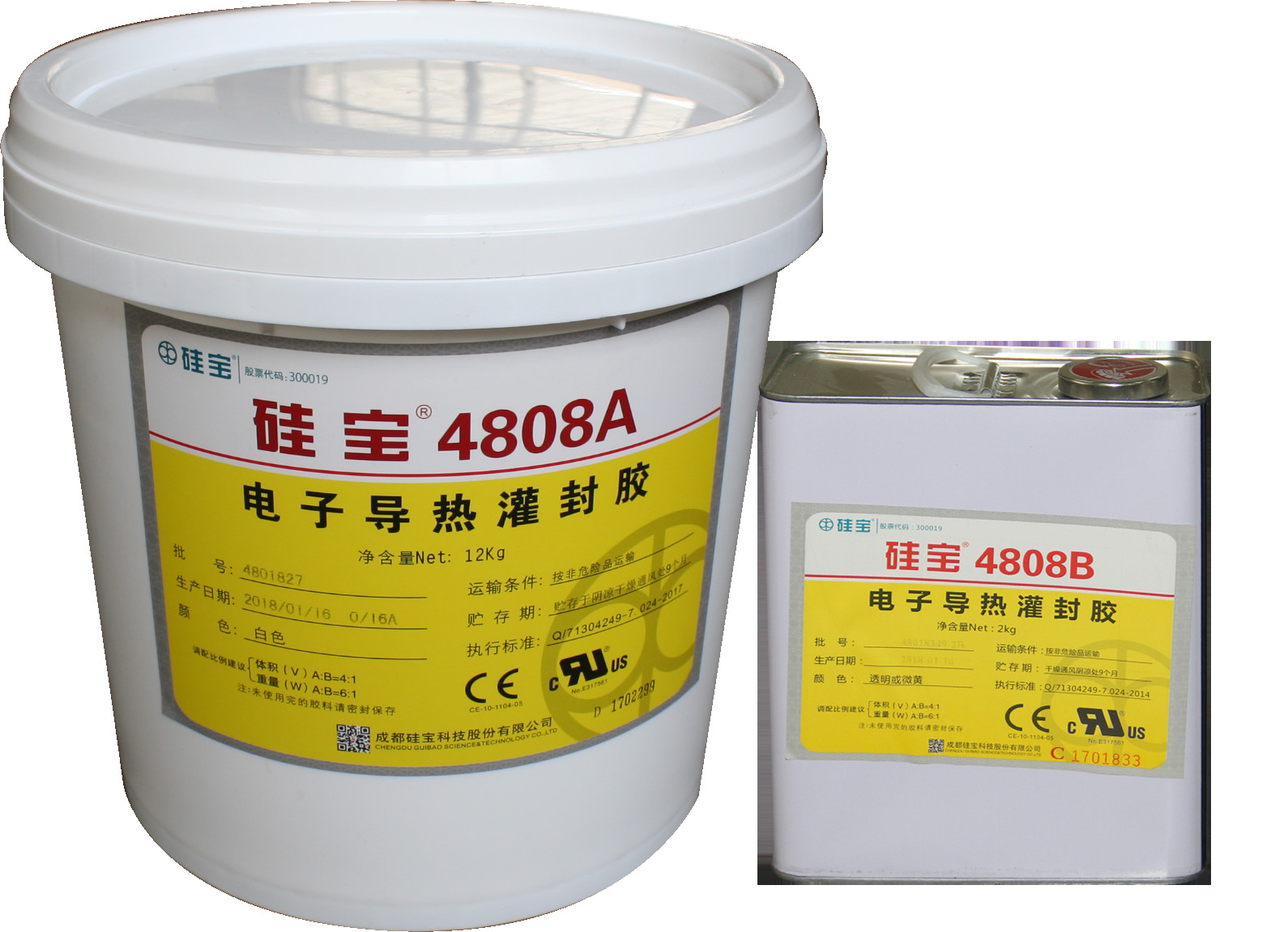

GB4808 is available in kits: Part A in plastic pails (12kg), part B in plastic pails (2kg); or Part A in plastic pails (3kg), part B in plastic cartridges (300ml, 0.5kg).
Potting the junction boxes of solar modules
Potting the wind turbines, motors, air cooler machines and other large electromechanical equipment for watertight, thermal dissipation and buffer purposes
Bonding, fixing and thermal conductive potting for electronic components and electric equipment
Part A: white fluid
Part B: shallow yellow liquid
|GB/T 2794||Viscosity as mixed at 25 ℃||mPa•s||2500～5500|
|Cured after 7 days at 23±2℃,RH 50±5%|
|GB/T 531.1||Hardness||Shore A||35~55|
|GB/T 528||Tensile strength||MPa||≥1.0|
|GB/T 1692||Volume resistivity||Ω·cm||≥1×1014|
|GB/T 1695||Dielectric strength||kV/mm||≥18|
|GB/T 1693||Dielectric constant(1MHz)||≤3.5|
|ISO 22007-2||Thermal conductivity||W/m·K||≥0.4|
These values are not intended for use in preparing specifications.
*GB: Chinese National Standard
ASTM: American Society for Testing and Materials
ISO: International Standardization Organization
HOW TO USE
Mix part A base to Part B curing agent at a ratio of 5.5~6.5:1 by weight or 3.5~4.5:1 by volume, and then pot the mixture into the parts of substrates where needed, place at room temperature for initial curing for about 2～4 hours before conducting the next procedure. If precipitation occurs in Part A, just stir it well before use, and this does not affect the performance of the sealant.
When using automatic dispensing machine, set at a ratio of 3.5~4.5:1 by volume of part A to Part B for a test first and then put into use.
STORAGE AND SHELF LIFE
GB4808 should be stored in original unopened containers and in cool and dry places, and be kept away from rain or direct sunshine.
GB 4808 has a shelf life of 9 months from the date of manufacture.
GB 4808 is non-hazardous for transportation.
Screw tight the cover of Part B immediately after use to avoid the exposure to atmospheric moisture
Part A base and part B curing agent should be fully mixed to ensure the homogenity of the sealant, or it affects the performance of the sealant.
Part A and Part B should be kept separately and get mixed on site, and be used within a short time after mixing.
For common low-voltage electrical potting, de-bubbling is not needed, but vacuum de-bubbling for 3～5 minutes is required for high voltage electrical potting.
GB 4808 is a chemical product, not edible, no implantation into body and should be kept away from children.
Should uncured silicone sealant contact with eyes, rinse thoroughly with water and seek medical treatment if irritation persists.
Avoid prolonged periods of exposure of skin to uncured silicone sealant.
Good ventilation is necessary for work and cure places.
Guibao has been certified by ISO9001, ISO14001 and OHSAS18001management systems. The whole production process goes strictly in conformity with the regulations.
