|Place of Origin:||CHINA|
|Certification:||IATF 16949:2016， Rohs|
Payment & Shipping Terms:
|Minimum Order Quantity:||310ml: 720pcs|
|Packaging Details:||Cartridge: 310ml|
|Delivery Time:||4 work days|
|Supply Ability:||20000pcs/4 work days|
|Color:||Black, Grey||Application:||Car Lamp, Car Light, Automotive Lights|
|Type:||One Part||Material:||Silicone Sealant|
|Feature:||Low VOC||Key Words:||Car Lamp, Car Light, Automotive Lights|
661 Automotive Silicone Sealant,
Auto Light Automotive Silicone Sealant,
661 automotive silicone sealers

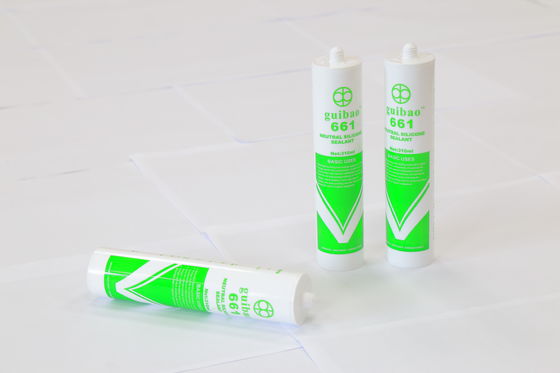

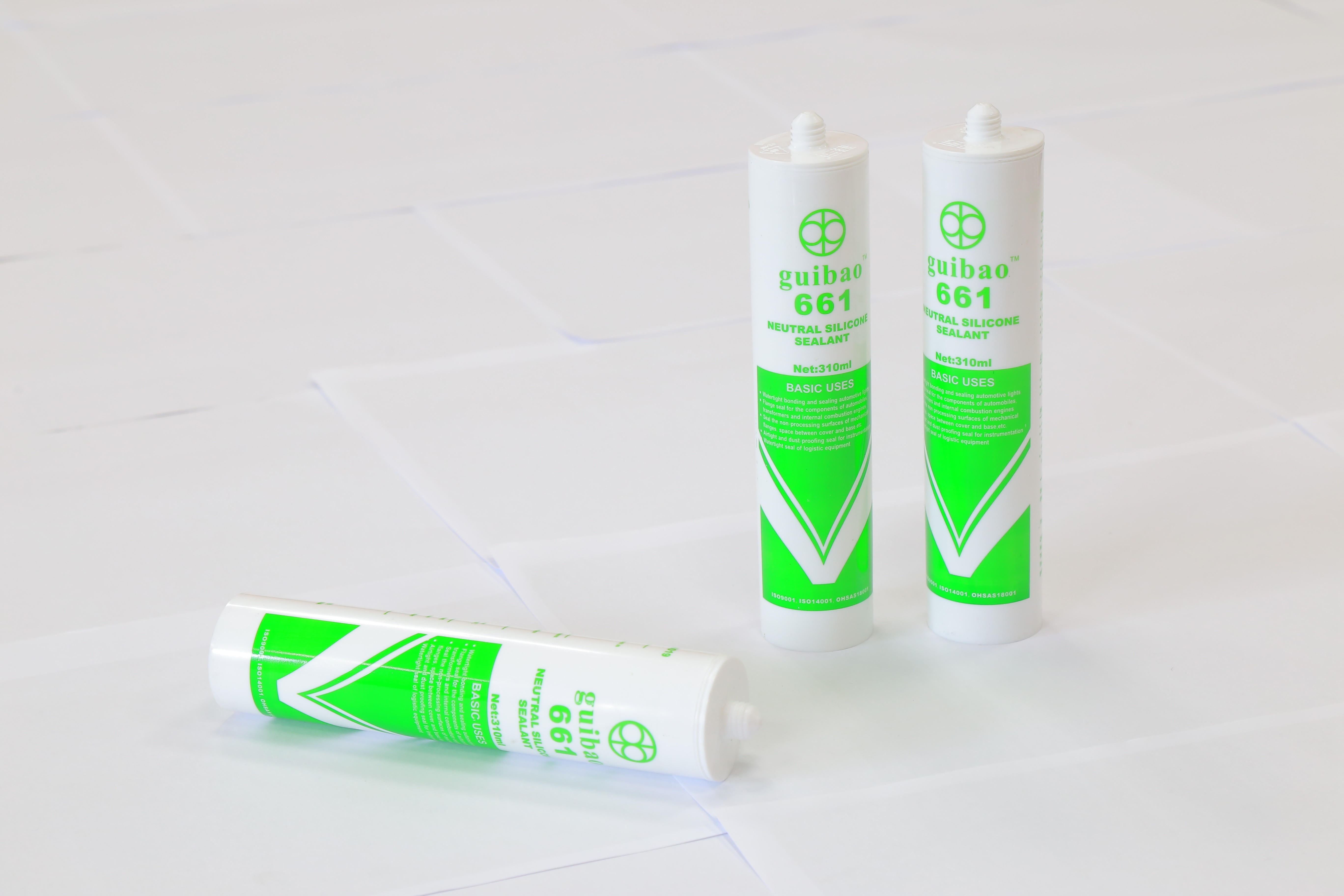

One Part Neutral Auto Light Silicone Sealant
GB 661 Neutral Silicone Sealant is specially designed for
Watertight bonding and sealing automotive lights
Flange seal for the transformer and internal-combustion of automotive
Watertight seal of other high-end light
One part, neutral room temperature cure to form an elastomeric rubber
Stable performance from –55 ℃ to +180 ℃
Excellent unprimed adhesion to a wide range of materials such as metal, plastic, porcelain and glass
These values are not intended for use in preparing specifications
|GB/T 13477 (ISO 7390)||Slump||mm||0|
|GB/T 13477 (ASTM D 2377)||Tack free time( 23℃)||min.||30|
|Cured after 7 Days, at 23℃ and 45%~55% RH|
|GB/T 531 (ISO 7619)||Hardness||Shore A||46|
|GB/T 528 (ISO 37)||Tensile Strength||MPa||2.3|
|GB/T 528 (ISO 37)||Elongation at break||%||270|
STORAGE AND SHELF LIFE
GB 661 should be stored in original unopened containers. The shelf life is 9 months from the date of manufacture.
GB 661 should not be applied
As structural sealant
In totally confined spaces
In continuous water immersion
When material surface temperature is below 4℃ or over 50℃.
HOW TO USE
All surfaces of the substrates must be clean and dry. All dust, grease, rust, etc. should be removed.
GB 661 has excellent unprimed adhesion to most substrates.
Priming or plasma processing is necessary for the low surface energy substrates such as PTFE, Polypropylene, Polyethylene
The cure time may extend when the sealant is applied into deep section or when the ambient temperature is low
For optimal adhesion, GB primer is recommended.
Clean the substrate surface with solvents and then apply a coat of primer by dipping, brushing or spraying.
Allow primer to dry for 5~10 minutes. Apply the silicone sealant onto the primer once the substrate surface a little sticky when touched with hand.
For special applications, drying in the shade, humidification and drying in the high temperature should be adopted to ensure the cure stability.
GB 661 can be applied manually.
Apply a bead of GB LV 661 with a dispensing gun to one of the prepared surface, and then cover quickly with the other substrate to be bonded. If applied to deep section, especially when access to moisture is restricted, it takes longer to cure completely. And cure time is extend at lower temperature and humidity
GB 661 can also be applied with dispensing machines
Should uncured silicone sealant contact with eyes, rinse thoroughly with a lot of water and seek medical treatment if irritation persists.
Keep the uncured silicone sealant away from children.
Good ventilation is necessary for work and cure places.
