Chengdu Guibao Science & Technology Co., Ltd.,

One Part Structural Bonding 999 Curtain Wall Silicone Sealant

Product Details:
Place of Origin: CHINA
Brand Name: GUIBAO
Certification: ISO, SIRIM
Model Number: 999
Payment & Shipping Terms:
Minimum Order Quantity: 2000 pcs
Price: Negotiable
Packaging Details: Cartridges (net 300ml) , sausages (net 590ml).
Delivery Time: 4 working days
Payment Terms: T/T, L/C
Supply Ability: 20000 pcs/4 working days
  • Detail Information
  • Product Description

Detail Information

Usage: Construction Main Raw Material: Silicone
Color: Black, Gray, And White Feature: One Part, Neutral Cure
Shelf Life: 12 Months Volume: 300ml/plastic Cartridges,590ml/aluminium Sausages
Package: Carton Application: Structural Bonding And Glazing Applications For Glass Curtain Walls, Aluminum Curtain Walls, Terracotta Curtain Walls And Metal Structures. Other Construction Structural Glazing Applications
High Light:

999 Curtain Wall Silicone Sealant

,

300ml Curtain Wall Silicone Sealant

,

999 sealant

Product Description

One Part Curtain Wall Silicone Structural Glazing Sealant



High tensile strength sealant ideally suited for structural bonding and glazing applications.



FEATURES



One part, neutral cure to form an extremely tough elastomeric rubber ensuring a durable, flexible, and watertight bond.

Non-corrosive to glass, metal etc.

Excellent weatherability and high resistance to ultra-violet radiation, heat and humidity, and ozone.

Excellent resistance to temperature extremes, unaffected performance from –50 ℃ to +150 ℃.

Excellent unprimed adhesion to wide range of substrates.

Good compatibility with other neutral silicone sealants.



COLOURS



GUIBAO 999 is available in black, gray, and white.



PACKAGING

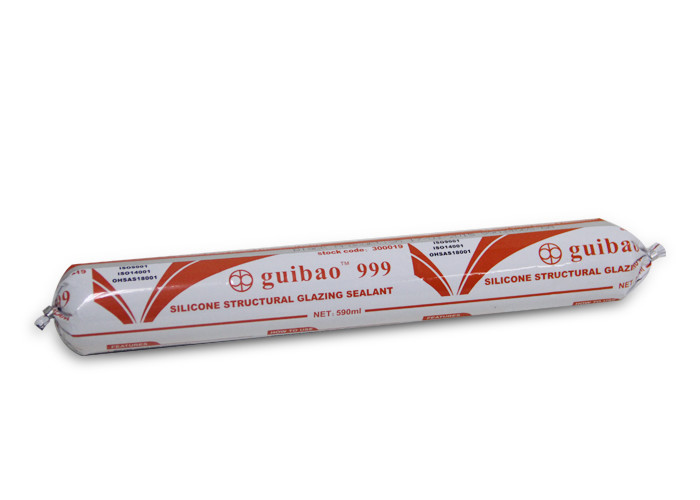

GUIBAO 999 is available in disposable cartridges (net 300ml) and sausages (net 590ml).





BASIC USES



GUIBAO 999 Silicone Structural Glazing Sealant is designed for:

Structural bonding and glazing applications for glass curtain walls, aluminum curtain walls, terracotta curtain walls and metal structures.

Other construction structural glazing applications



TYPICAL PROPERTIES



These values are not intended for use in preparing specifications



Test Method Property Unit Standard Result
GB/T 13477 (ISO 7390) Slump mm ≤3 0
GB/T 13477 (ISO 8394) Extrusion rate s ≤10 1.6
GB/T 13477 (ASTM D 2377) Tack free time h ≤3 1.0

GB/T 531.1 (ISO 7619)

53113477

Hardness Shore A 20~60 49
GB 16776 (ASTM C 792) Heat Aging
  weight loss % ≤10 3.6
  cracking   Nil Nil
  chalking   Nil Nil
GB/T 13477 (ISO 8339) Tensile strength

MPa




  23℃   ≥0.60 1.08
  90℃   ≥0. 45 0.90
  -30℃   ≥0. 45 1.3
  water immersion   ≥0. 45 1.12
  water-UV exposure   ≥0. 45 1.03
  adhesion failure % ≤5.00 0
  elongation at ultimate tensile strength at 23℃ % ≥100 220

*GB: Chinese National Standard

ASTM: American Society for Testing and Materials

ISO: International Standardization Organization



SPECIFICATIONS



GUIBAO 999 is designed to meet or even exceed the requirements of:

Chinese national specification GB16776-2005 Silicone Sealant for Structural Glazing.

Complies with ASTM C 1184.



CURE TIME



As exposed to air, GUIBAO 999 begins to cure inward from surface. Its tack free time is about 60 minutes, the full and optimal adhesion forms in about 21 days.



SHELF LIFE



It has a shelf life of 12 months from the date of manufacture.



LIMITATIONS



GUIBAO 999 should not be applied:

To the materials that bleed oils , plasticizers or solvents, such as impregnated wood, oil-based caulks.

In totally confined spaces as sealant requires atmospheric moisture for cure.

To frost laden or damp surfaces.

For continuous water immersion.

When substrate surface temperature below 4℃ or over 50℃.



HOW TO USE



Surface Preparation

Clean all joints removing all foreign matter and contaminants such as oil, grease, dust, water, frost, old sealants, surface dirt, or glazing compounds and protective coatings.



Application Method

Install back-up materials or joint fillers, setting blocks, spacer shims, and tapes. Mask areas adjacent to joints to ensure neat sealant lines. Primer is generally not required for non-porous surfaces, but may be necessary for optimal seal performance of certain porous surfaces. So adhesion test is always recommended.

Apply GUIBAO 999 in a continuous operation using dispensing guns. Before a skin forms, tool the sealant with light pressure to spread the sealant against the backing materials and joint surfaces. Remove masking tape as soon as the bead is tooled.



SAFETY INFORMATION



GUIBAO 999 is a chemical product, not edible, no implantation into body and should be kept away from children.

Cured silicone rubber can be handled without any risk to health.Should uncured silicone sealant contact with eyes, rinse thoroughly with water and seek medical treatment if irritation persists.

Avoid prolonged exposure of skin to uncured silicone sealant.

Good ventilation is necessary for work and cure places.
