Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GUIBAO |
| Certification: | Rohs/ UL |
| Model Number: | 4926 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100 SETS |

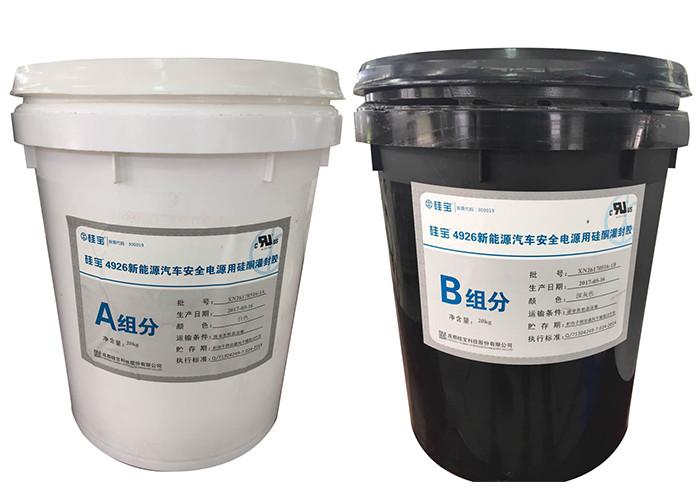

| Packaging Details: | Part A: 2.5kg/pail Part B: 2.5kg/pail One set=2.5kg Part A+ 2.5kg Part B |
| Delivery Time: | 4 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 SETS per 4 work days |
|
Detail Information |
|||
| Color: | Part A : White Part B: Black | Type: | Two Part |
|---|---|---|---|
| Material: | Silicone Sealant | Properties: | Volume Resistivity, Breakdown Strength,Dielectric Constant(1MHz),Thermal Conductivity |
| Ratio: | 1:1 By Weight | Keywords: | Silicone Sealant, Addition Type ,electronic Components, Thermal Conductive, Electric Equipment |
| High Light: | fireproof silicone sealant,weatherproof silicone sealant |
||
Product Description
Thermal Conductive Potting Sealant Electronic Grade Silicone Sealant
Two part addition type RTV silicone sealant; cure rate increases by heating
BASIC USES
Potting electronic components for watertight, thermal dissipation and buffer purposes
Bonding, fixing and thermal conductive potting for electric equipment
FEATURES
Good flowability as supplied , good self-debubbling performance
Stable and elastic over the temperature -40℃～+180℃
Excellent electrical insulation , and resistance to arch, corona and shock
Excellent resistance to water ,moisture, ozone and aging, long lasting protection for electric and electronic parts
Excellent thermal conductivity, efficient heat dissipation
TYPICAL PROPERTIES
These values are not intended for use in preparing specifications.
| Test Method | Property | Unit | Result |
| As supplied | |||
| / | Appearance |
Part A: white fluid Part B: black fluid |
|
| GB/T 2794 | Viscosity as mixed at 25 ℃ | mPa•s | 3000～4500 |
| GB/T 16776 |
Working time at 25℃ |
Min. | ≥40 |
| / | Initial cure time | h | 4 |
| / | Curing time | h | 24 |
| Cured after 7 days at 23±2℃,RH 50±5% | |||
| GB/T 13477 | Density | g/m³ | 1.80±0.05 |
| GB/T 531.2 (ISO 7619) | Hardness | Shore A | 57 |
| GB/T 528 (ISO 37) | Tensile strength | MPa | 1.8 |
| GB/T 528 (ISO 37) | Elongation at break | % | 70 |
| GB/T 1692 | Volume resistivity | Ω·cm | 1×1015 |
| GB/T 1695 (ASTM D 149) | Breakdown strength | kV/mm | 20 |
| GB/T 1693 (ASTM D 150) | Dielectric constant(1MHz) | 3.0 | |
| GB/T 11205 | Thermal conductivity | W/m·K | 0.76 |
HOW TO USE
Mix part A base to Part B curing agent at a ratio of 1:1 by weight, and then pot the mixture into the required parts, place at room temperature to let it form elastomer, use after 24 ～48 hours.
When using automatic dispensing machine, set at a ratio of 1:1 by weight of part A to Part B for a test first and then put into use.
STORAGE AND SHELF LIFE
Guibao4926 should be stored in original unopened containers over temperature from 4℃to 27℃ and be kept away from rain or direct sunshine.
Guibao 4926 has a shelf life of 9 months from the date of manufacture.
Guibao 4926 is non-hazardous for transportation.
NOTES
The surface of the parts must be cleaned, free of any N,P,S,havey metal or any other compound
Screw tight the cover of Part B immediately after use to avoid the exposure to atmospheric moisture
Part A base and part B curing agent should be fully mixed to ensure the homogenity of the sealant, or it affects the performance of the sealant.
Part A and Part B should be kept separately and get mixed on site, and be used within a short time after mixing.
For common low-voltage electrical potting, de-bubbling is not needed, but vacuum de-bubbling for 3～5 minutes is required for high voltage electrical potting.
