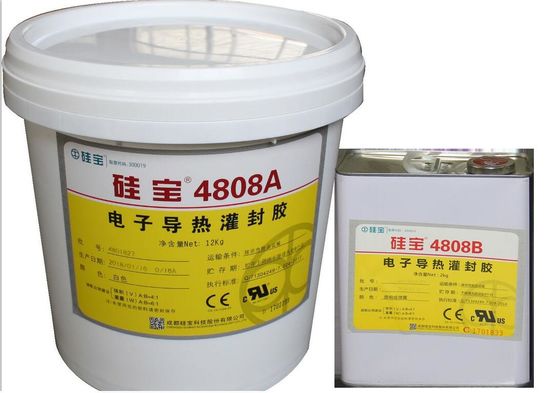

Electronic Potting Silicone Solar Panel Sealant For Solar Modules UL Certified

Product Details:
Place of Origin: CHINA
Brand Name: GUIBAO
Certification: UL,Rohs
Model Number: 4808
Payment & Shipping Terms:
Minimum Order Quantity: 100 sets
Price: Negotiable
Packaging Details: Part A in plastic pails (12kg), part B in plastic pails (2kg)
Delivery Time: 4 work days
Payment Terms: T/T
Supply Ability: 100 sets/ 4 working days
  • Detail Information
  • Product Description

Detail Information

Color: Part A: White Fluid Part B: Shallow Yellow Liquid Package: Part A In Plastic Pails (12kg), Part B In Plastic Pails (2kg); Or Part A In Plastic Pails (3kg), Part B In Plastic Cartridges (300ml, 0.5kg)
Shelf Life: 6 Months Packing: Part A :12kg, Part B 2kg
Key Words: Electronic Potting Sealant For Solar Junction Box Feature: Two Part,good Self-debubbling Performancexcellent Electrical Insulation , And Fire Resistance Performance,
Characteristic: High Quality
High Light:

Electronic Potting Solar Panel Sealant

,

UL Certified Solar Panel Sealant

,

UL Certified solar seal caulk

Product Description

Electronic Potting UL Certificate Excellent Electrical Insulation Silicone Sealant





FEATURES



UL certified

Good flowability as supplied , good self-debubbling performance

Stable and elastic over the temperature -50℃~+200℃

Excellent electrical insulation , and fire resistance performance

Excellent resistance to water ,moisture

Excellent adhesion to PPO,PET,PVDF and other materials

Non-corrosive to copper, aluminium, tin ,silver and many other materials

FV-0 class fire resistance capability

Excellent thermal conductivity



COLOURS



GUIBAO 4808 part A is available in white or black fluid, and part B in clear or shallow yellow liquid. It is white or black fluid after mixing.



PACKAGING



GUIBAO 4808 is available in kits: Part A in plastic pails (12kg), part B in plastic pails (2kg); part B in plastic cartridges (300ml).



BASIC USES



Potting the junction boxes of solar modules

Potting the wind turbines, motors, air cooler machines and other large electromechanical equipment for watertight, thermal dissipation and buffer purposes

Bonding, fixing and thermal conductive potting for electronic components and electric equipment



TYPICAL PROPERTIES



Test Method Property Unit Result
As supplied
/ Appearance

Part A: white fluid

Part B: shallow yellow liquid

GB/T 2794 Viscosity as mixed at 25 ℃ mPa•s 2500~3500
/ Working time min. ≤30
/ Curing time h 24
Cured after 7 days at 23±2℃,RH 50±5%
GB/T 531.1 Hardness Shore A 35~50
GB/T 528 Tensile strength MPa ≥1.0
GB/T 1692 Volume resistivity Ω·cm ≥1×1014
GB/T 1695 Dielectric strength kV/mm ≥18
GB/T 1693 Dielectric constant(1MHz)   ≤3.5
ISO 22007-2 Thermal conductivity W/m·K ≥0.4





































These values are not intended for use in preparing specifications.

*GB: Chinese National Standard

ASTM: American Society for Testing and Materials

ISO: International Standardization Organization



HOW TO USE



Mix part A base to Part B curing agent at a ratio of 6:1 by weight or 4:1 by volume, and then pot the mixture into the parts of substrates where needed, place at room temperature for initial curing for about 2~4 hours before conducting the next procedure. If precipitation occurs in Part A, just stir it well before use, and this does not affect the performance of the sealant.

When using automatic dispensing machine, set at a ratio of 6:1 by weight or 4:1 by volume of part A to Part B for a test first and then put into use.



STORAGE AND SHELF LIFE



GB4808 should be stored in original unopened containers and in cool and dry places, and be kept away from rain or direct sunshine.

GB 4808 has a shelf life of 6 months from the date of manufacture.

GB 4808 is non-hazardous for transportation.



NOTES



Screw tight the cover of Part B immediately after use to avoid the exposure to atmospheric moisture

Part A base and part B curing agent should be fully mixed to ensure the homogenity of the sealant, or it affects the performance of the sealant.

Part A and Part B should be kept separately and get mixed on site, and be used within a short time after mixing.

For common low-voltage electrical potting, de-bubbling is not needed, but vacuum de-bubbling for 3~5 minutes is required for high voltage electrical potting.



SAFETY INFORMATION



GUIBAO 4808 is a chemical product, not edible, no implantation into body and should be kept away from children.

Should uncured silicone sealant contact with eyes, rinse thoroughly with water and seek medical treatment if irritation persists.

Avoid prolonged periods of exposure of skin to uncured silicone sealant.

Good ventilation is necessary for work and cure places.
